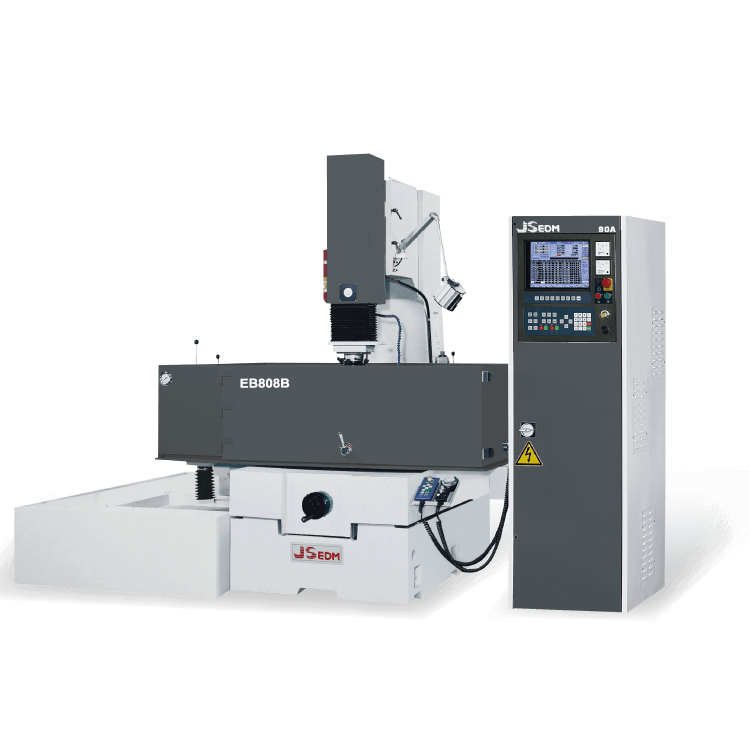

EB808N

ZNC-EB EDM

EBN (ZNC) Machine Structure


• The machine frame adopts FC30, and has gone through heat treatment and an annealing process to ensure the metal is highly rigid, preventing deformation.

• The working table has gone through high frequency induction hardening and surface polishing to increase machining accuracy and lifespan.

• Ball screws are utilized in X, Y Axis. (EB304B, EB606N, EB707B, EB808B).

• One V and one flat design for maximum accuracy. (EB304B, EB606N, EB707B, EB808B).

• The contacting faces of X, Y Axis are TURICE-B for smoother movement. (EB304B, EB606N, EB707B, EB808B).

• Linear Guide Way and High Accuracy screw are used on Z axis, with PWM servo system (Same class as CNC model) can perform maximum working efficiency. (EB304B, EB606N, EB707B, EB808B).

• Back slide is provided for Z axis. (EB304B, EB606N, EB707B, EB808B).

• Remote Controller is provided to the user.

• Single or 3 axis lateral machining, Round orbiting, Square orbiting, & Vector machining.

• Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision ball screws on X, Y, Z axis.
• Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision Linear Guide Way on X, Y, Z axis.
• A standard Up/Down door is installed in model that travels more than 800mm on both X, Y axis (EB860N).
• Model that travels more than 800mm on both X, Y axis (EB860N), the movement of X, Y axis are controlled by servo motor.
• Model that travels more than 800mm on both X, Y axis (EB860N), the movement of the X, Y axis are relied on a movable column.
