Máquinas Barrenadoras - Series Manual

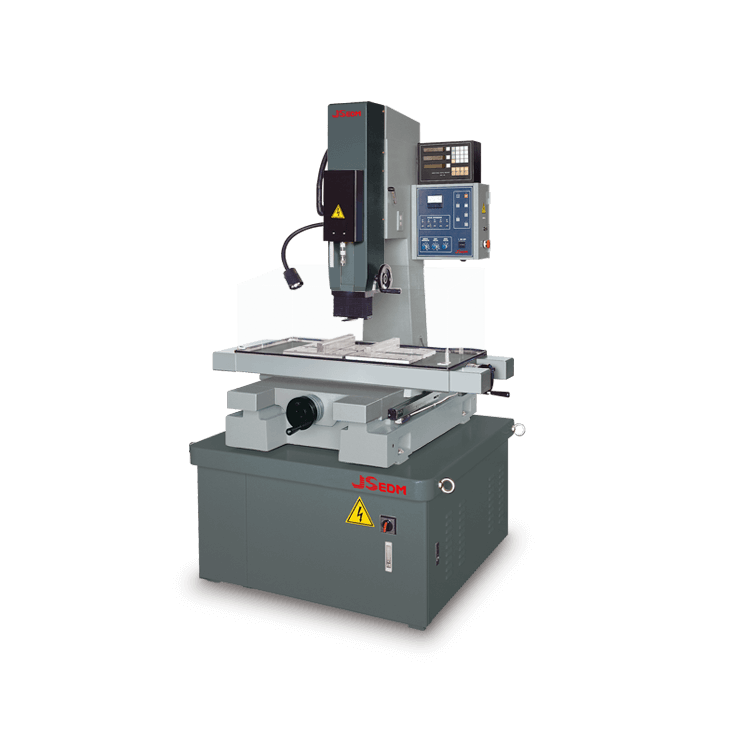

AD-30A

Manual Series

Manual Drilling EDM, With ZNC Function

Precision servo motor control for stable drilling.
Designed for drilling hardened tool steel,carbides and other conductive materials.
Suitable for larger workpieces and plastic molds.
Drilling capacity from 0.2mm to 3.0mm.Brass or copper electrodes available.
Automatic pressure release function.
Long life work table made of stainless steel.

Más Información

Especificaciones

Work Table Dimensions	500x300 mm
Max. Workpiece Dimensions	875x470 mm
Table Travel X, Y	350x250 mm
Z Axis Travel	350 mm
Ram Servo Travel	350 mm
Max. Length of Electrode	400 mm
Electrode Diameter	Ø0.2~Ø3.0 mm
Max. Workpiece Weight	150 kgs
Dielectric	Water
Capacity of Dielectric	20 Litres
Machine Weight (NW / GW)	800 / 900 kg
Packing Dimensions	1240x1210x2240 mm

* Todas las especificaciones están sujetas a cambio sin previo aviso.
