Máquinas Barrenadoras - Series Manual

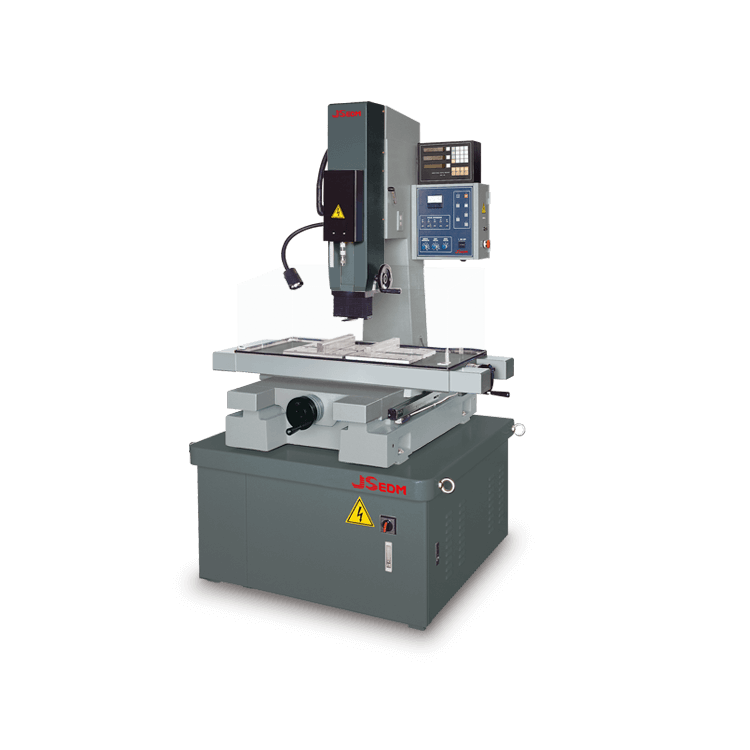

AD-40A

Manual Series

Manual Drilling EDM, With ZNC Function

Precision servo motor control for stable drilling.
Designed for drilling hardened tool steel,carbides and other conductive materials.
Suitable for larger workpieces and plastic molds.
Drilling capacity from 0.2mm to 3.0mm.Brass or copper electrodes available.
Automatic pressure release function.
Long life work table made of stainless steel.

Más Información

Especificaciones

Work Table Dimensions	600x300 mm
Max. Workpiece Dimensions	1000x500 mm
Table Travel X, Y	450x350 mm
Z Axis Travel	350 mm
Ram Servo Travel	350 mm
Max. Length of Electrode	400 mm
Electrode Diameter	Ø0.2~Ø3.0 mm
Max. Workpiece Weight	300 kgs
Dielectric	Water
Capacity of Dielectric	20 Litres
Machine Weight (NW / GW)	1000 / 1100 kg
Packing Dimensions	1450x1450x2240 mm

* Todas las especificaciones están sujetas a cambio sin previo aviso.
