Máquinas Barrenadoras - Series CNC

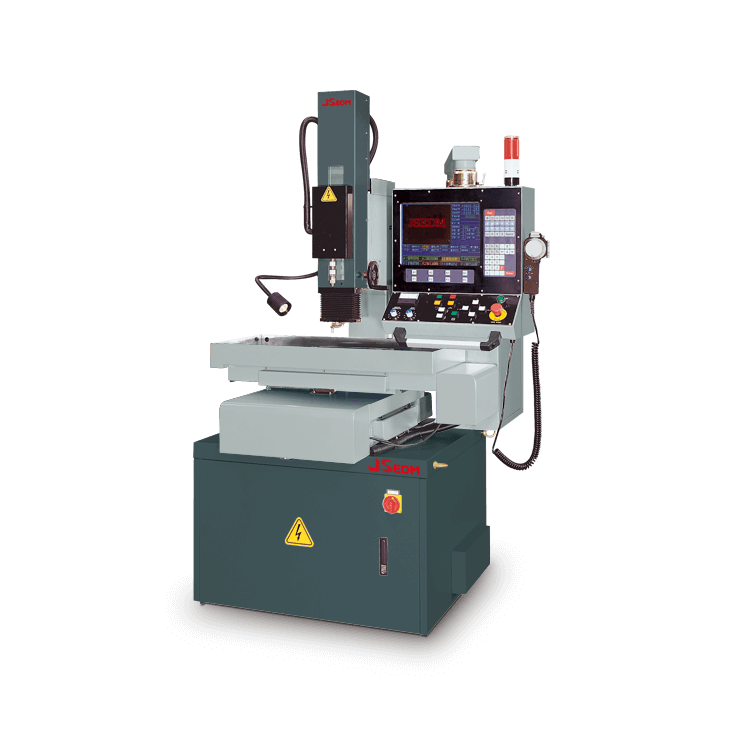

CNC-5060A

CNC Series

Fast - Stable - Accurate, Conversational Interface

  • Precision servo motors on X, Y, Z axis. The design provides excellent stability during drilling.
  • Provides 1μ optical scale, linear slideway and ballscrew to ensure accurate movement.
  • Reads NC program, G-code and DXF files directly. Finds the cutting start point automatically and begins the fine hole drilling process.
  • When NC program is not available, the machining coordination can be inputted directly.
  • Automatic centering, edging and internal diameter detection.
  • Coordinates can rotate to any angle.
  • Drilling capacity from 0.2mm to 3.0mm.Brass or copper electrodes available.
  • Mirror image function.
  • Automatically illustrates the path of current andnext drilling position with colors.
  • Z-axis auto reset and depth calculation.(Z-axis checks hole depth automatically, and returns to complete any that is too shallow.)
  • Data input by USB or network transfer.
  • Simple and user-friendly interface.

Más Información

  • Especificaciones

    Work Table Dimensions 600x700 mm
    Max. Workpiece Dimensions 800x1120 mm
    Table Travel X, Y 500x600 mm
    Z Axis Travel 350 mm
    Ram Servo Travel 350 mm
    Max. Length of Electrode 400 mm
    Electrode Diameter Ø0.2~Ø3.0 mm
    Max. Workpiece Weight 500 kgs
    Dielectric Water
    Capacity of Dielectric 100 Litres
    Machine Weight (NW / GW) 2200 / 2400 kg
    Packing Dimensions 1900x1700x2400 mm
    Machine Structure Double Column

* Todas las especificaciones están sujetas a cambio sin previo aviso.
