Máquinas Barrenadoras - Series ATC

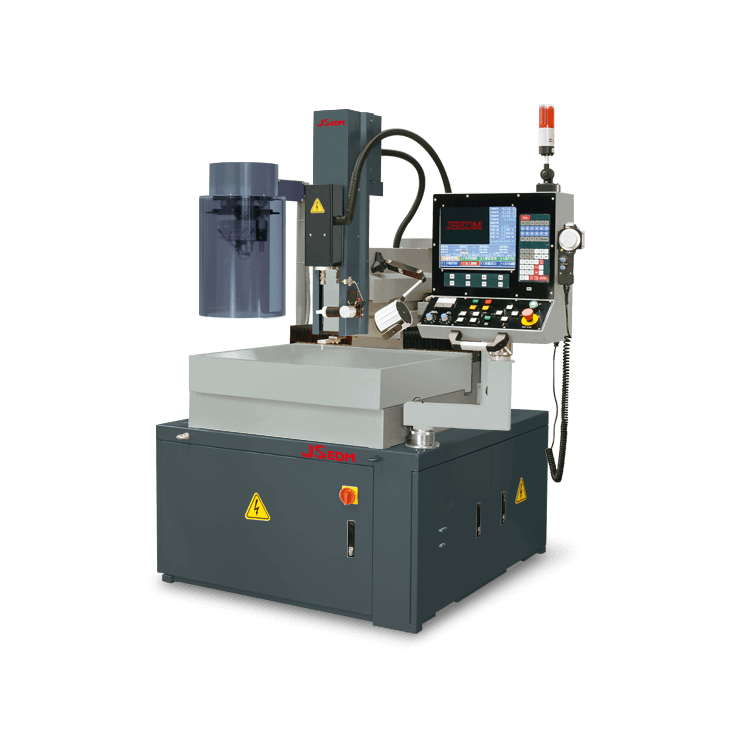

CNC-5060AT

ATC Series

Fast - Stable - Accurate, Conversational Interface

• Precision servo motors on X, Y, Z axis. The design provides excellent stability during drilling.

• Provides 1μ optical scale, linear slideway and ballscrew to ensure accurate movement.

• Reads NC program, G-code and DXF files directly. Finds the cutting start point automatically and begins the fine hole drilling process.

• When NC program is not available, the machining coordination can be inputted directly.

• Automatic centering, edging and internal diameter detection.

• Coordinates can rotate to any angle.

• Drilling capacity from 0.2mm to 3.0mm.Brass or copper electrodes available.

• Mirror image function.

• Automatically illustrates the path of current andnext drilling position with colors.

• Z-axis auto reset and depth calculation.(Z-axis checks hole depth automatically, and returns to complete any that is too shallow.)

• Data input by USB or network transfer.

• Simple and user-friendly interface.
