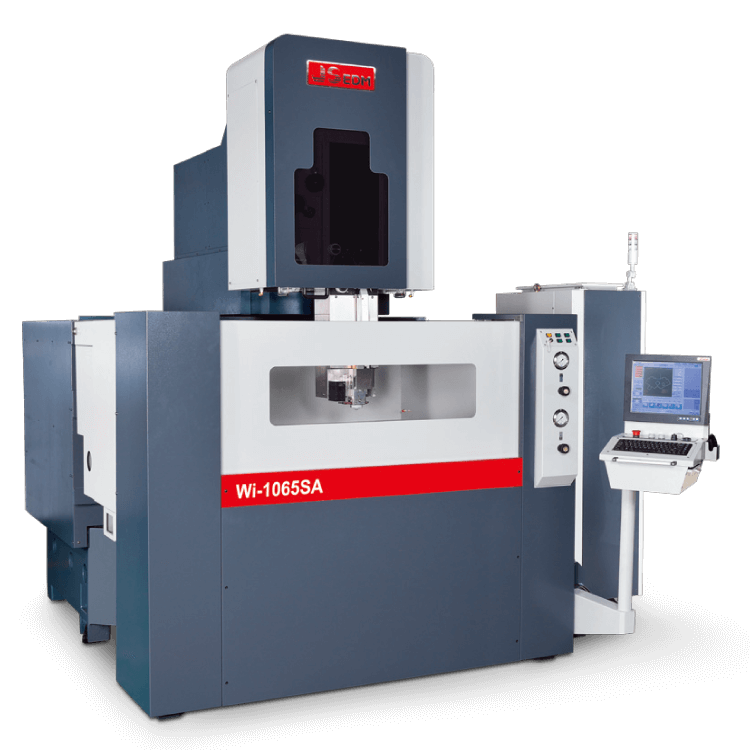

Máquinas de Alambre - Series Wi
User Friendly CNC control system
- Useful functions are added to simplify the positioning preparation before machining.
- Simple user interface, with an edit hot key zone for easy operation.
- Movable 3D animation allows user to inspect the cutting process at different angles.
- Various compensation functions have been designed to improve the quality of the product.
- Various ways of data transmitting, including using Ethernet, USB port, and RS232.
-
Especificaciones
Maximum Workpiece Size (LxWxH) |
1550x1050x515 mm |
Work Table Size |
1345x680 mm |
Maximum Workpiece Weight |
1000 kgs |
Drive & Servo |
5 axes AC Servo |
Simulations Axis |
X / Y / U / V (4 axes) |
X/Y Axis Travel |
1000/ 600 mm |
Z Axis Travel |
520 mm |
U/V Axis Travel |
160/160 mmm |
Wire Diameter Range |
Ø 0.15~0.3 mm |
Max. Taper Angle (°)Workpiece Thickness |
±22.5 (100 mm) |
Maximum Axes Load |
16 kgs |
Conductivity |
Automatic |
Water Tank Capacity |
2400 L |
Net Weight |
8000 kgs |
Dimension (LxWxH) |
4200x4350x3250 mm |
* Todas las especificaciones están sujetas a cambio sin previo aviso.
